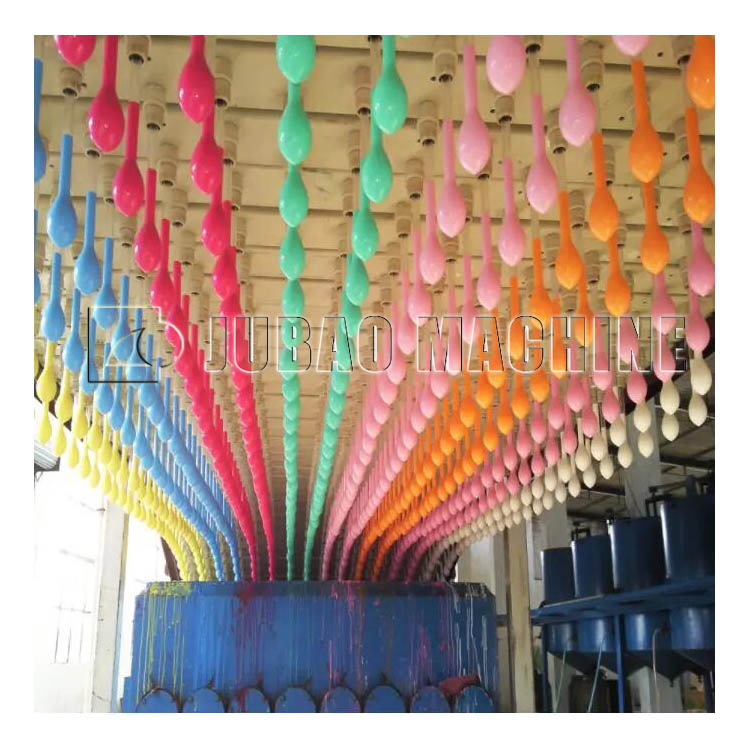

JB-QQ Latex balloon dipping machine
PRODUCT SERIES: Balloon Machine Series
Main Products: Dipped decorated balloons
Color:
-
The main craftwork flow is:-Milling-Vulcanization-Stripping Off-Acid Wash-Brush Wash-Hot Water Wash-Dipping Coagulant-Dipping Latex-Drying-Beading-Drying-Add SlurryThis machine system realized communication controlled by humanity-machine interface. They raise the digitized level of the system having it steady. Industry level modularization design, simple humanity-machine dialog and main speed and every section temperature can be shown in the screen. Each oven’s temperature can be controlled automatically by the temperature controller.Balloon dipping machine consists of main frame,acid tank,washing tank,stripping device,acid tank,water tank,cogulant tank,oven,latex tank, beading, rail,converying system,ladder, storage tank,vulcanization tank,mixing tank etc.The electric control system include the Programmable Logic Control(PLC), touch screen, converter etc. electronic control units and wires. Except the touch screen and sensors, the other electric parts were installed inside the control box. The control box is easy to maintance.The PLC and its software is the heart of the control system. It is mainly for help the balloon dipping machine to finish its machine action, parameter control and trouble inspection etc. It can control and manage the manufacturing, quality, user operation interface in real time.

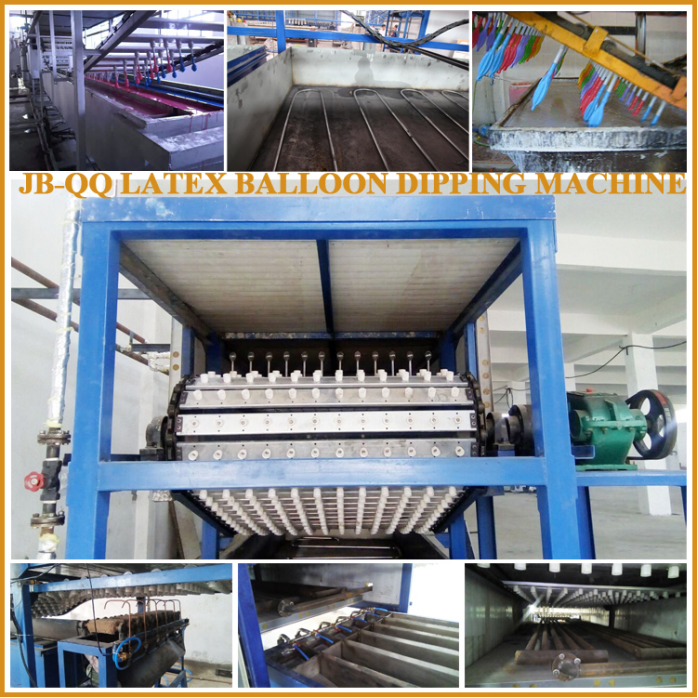

Detail:

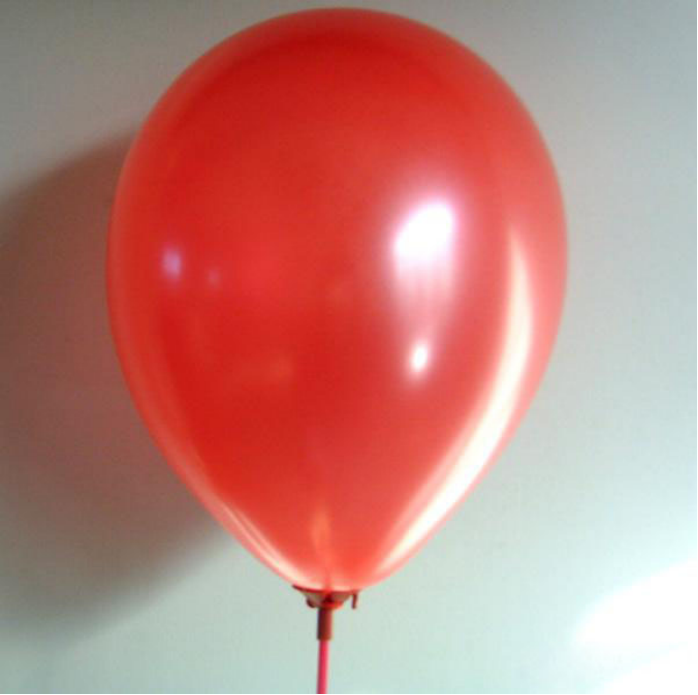

Finished products:
Tip: There is a need for more detailed information, please call customer service!
-
Technical parameters:
Model
JB-QQ45
JB-QQ60
JB-QQ80
JB-QQ100
Dimension(L*W*H*)
45*2.23*3.15m
60*2.23*3.15 m
80*2.23*3.15m
100*2.23*3.15m
Layer
2
2
2
2
Color/time
6
6
8
8
Mold/row
12
12
16
18
12"/9" /7"
Capacity(pcs/hr)
16000-24000
21000-32000
39000-58000
48000-73000
Heat(Kcal/hr)
250000
400000
500000
625000
Power(kw/hr)
23
29
32
40
Weight(ton)
35
42
45
56
Heating Source
Steam、Thermos oil、Natural Gas、Electricity Etc.
Voltage(V)
380/220V 50-60HZ
