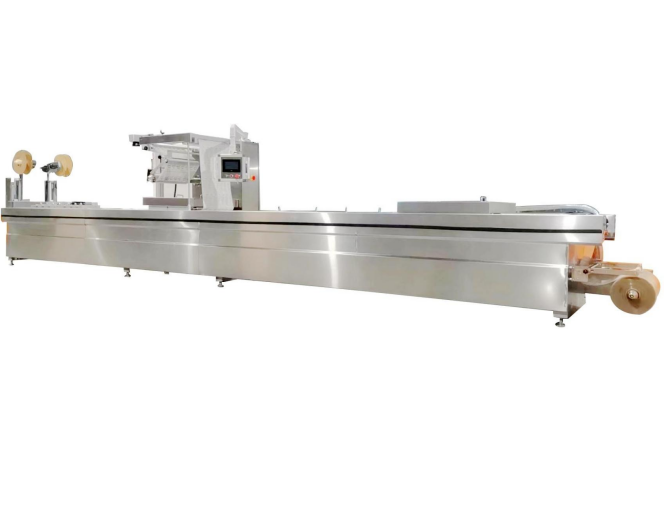

Stretch Film Packaging Machine

1.Easy to operate and widely adaptable. PLC+human-machine interface operation is simple; Customizable molds, compatible with multiple types of products on one machine.

2.Easy to maintain and more energy-efficient. Non aluminum frames are easy to maintain; Automated operation, cost reduction, energy saving, and high efficiency.

3.Safety guaranteed. Equipped with an automatic protection system to prevent accidents caused by misoperation.

Jubao Machine

Stretch Film Packaging Machine Product Features:

1.Easy to operate and widely adaptable. PLC+human-machine interface operation is simple; Customizable molds, compatible with multiple types of products on one machine.

2.Easy to maintain and more energy-efficient. Non aluminum frames are easy to maintain; Automated operation, cost reduction, energy saving, and high efficiency.

3.Safety guaranteed. Equipped with an automatic protection system to prevent accidents caused by misoperation.







Scope Of Application:

Packaging, meat products, sausages, chilled meat, eggs, casual packaging, etc.

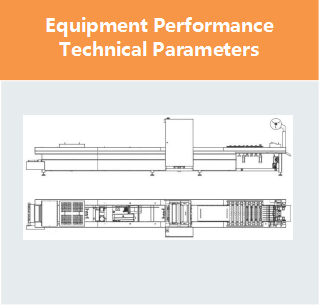

Technical information:

Equipment Power Supply 380V    50HZ    Three Phase Five Wire
Total Power 16KW
Host Size Length 8430 * Width 1200 * Height 1800mm
Upper Film /Lower Film Width 496mm/522mm
Molding /Heat Seal Temp 70-120℃/125-150℃
Studio Molding Pressure/Heat 0.15Mpa/0.15-0.3Mpa
Studio Molding Time 1S-2S
Studio Heat Sealing Time 1.5S
Degree Of Vacuum <30Kpa-20Kpa
Step Count 4-6 steps per minute
Power Voltage/Total Power 380V/50HZ/maximum power 15KW
Support Main Body Material  S30408 stainless steel material
Workshop Cooling Water Purified water
Equipment Weight ABout 1900KG
Air Compressor >0.6MPa,1.5m³/min
pressure 10kg: Gas storage tank 1.0m³, pressure Power 10kg
