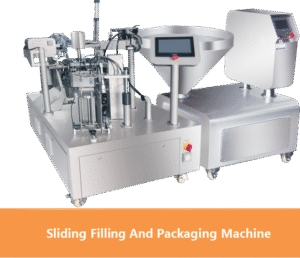

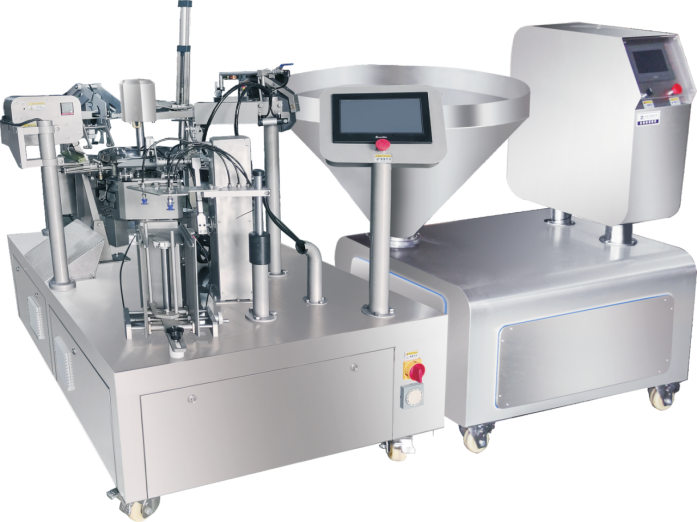

Sliding Filling And Packaging Machine

1.High filling accuracy. The machine adopts servo drive to adjust the filling speed, weight, and accuracy. The weighing technology can transmit the packaging data back to the PLC processor of the filling machine, and the AI intelligent program weights and calculates to readjust the filling weight, greatly improving the filling accuracy.

2.The packaging effect is good. Imitating the dual exhaust structure of ergonomics, the bottom compresses the exhaust, and the upper stretches the exhaust before flattening, making the packaging effect more beautiful.

3.Do not damage materials. Adopting a brand new design, while ensuring filling accuracy, the particle structure of the material is not damaged, and the taste and freshness of the material are preserved.



Jubao Machine

Sliding Filling And Packaging Machine Product Features:

1.High filling accuracy. The machine adopts servo drive to adjust the filling speed, weight, and accuracy. The weighing technology can transmit the packaging data back to the PLC processor of the filling machine, and the AI intelligent program weights and calculates to readjust the filling weight, greatly improving the filling accuracy.

2.The packaging effect is good. Imitating the dual exhaust structure of ergonomics, the bottom compresses the exhaust, and the upper stretches the exhaust before flattening, making the packaging effect more beautiful.

3.Do not damage materials. Adopting a brand new design, while ensuring filling accuracy, the particle structure of the material is not damaged, and the taste and freshness of the material are preserved.







Scope Of Application:

Shrimp paste, meat paste, oily meat slices, beef, liquid soup, etc

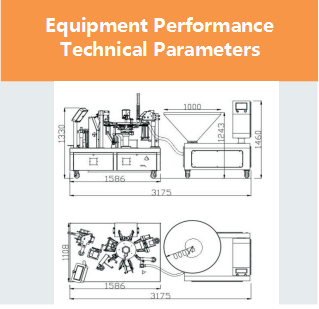

Technical information:

Equipment Power Supply 380V    50HZ    Three Phase Five Wire
Total Power 9.5KW
Center Speed 50r/min
Host Size Length 1600 * Width 1110 * Height 1330mm
Rack Form Main frame 10mm iron plate, outer layer wrapped in stainless steel, rice gold package,Pei channel 304 stainless steel or other food grade materials
Packaging Channel 304 stainless steel or other food grade materials
Bag Supply Method Updraft
Packaging Weight Range 60g-500g
Equipment Weight About 600KG
Running Speed About 20-35 Packs/Minute
Applicable Materials Shrimp paste,meat paste,liquid
Accurate Weighing Range  Error plus or minus about 3 grams
Packaging Bag Specifications Triangle bag width: (60mm-210mm), three side and four side sealed flat bag width:(160mm-220mm)
Pressure Requirements Gas consumption: 0.8m ³/min     Pressure: 0.6-0.8Mpa Clean gas
Inlet pipe: Φ 12mm (compressed air provided by the user)
