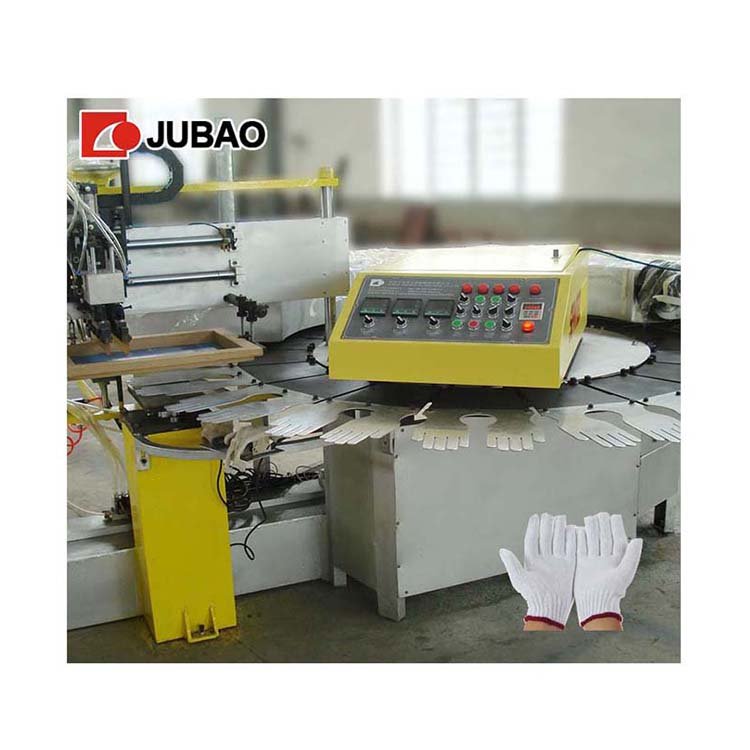

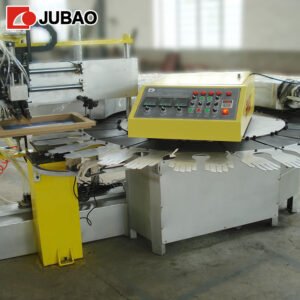

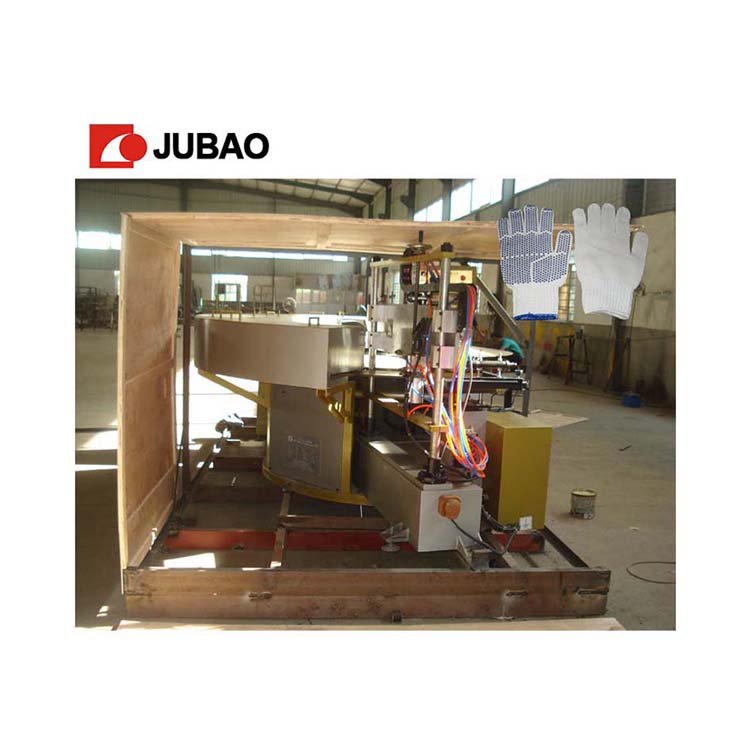

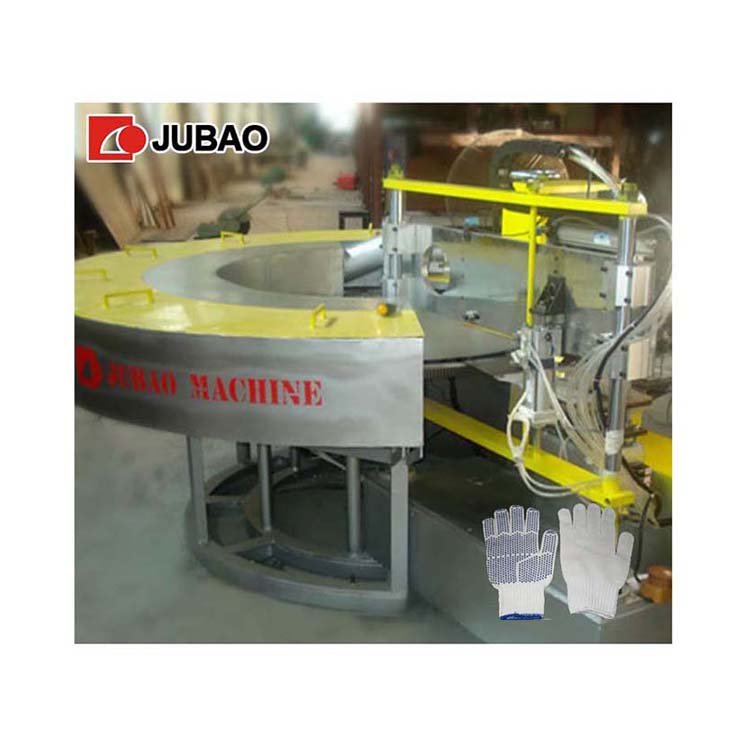

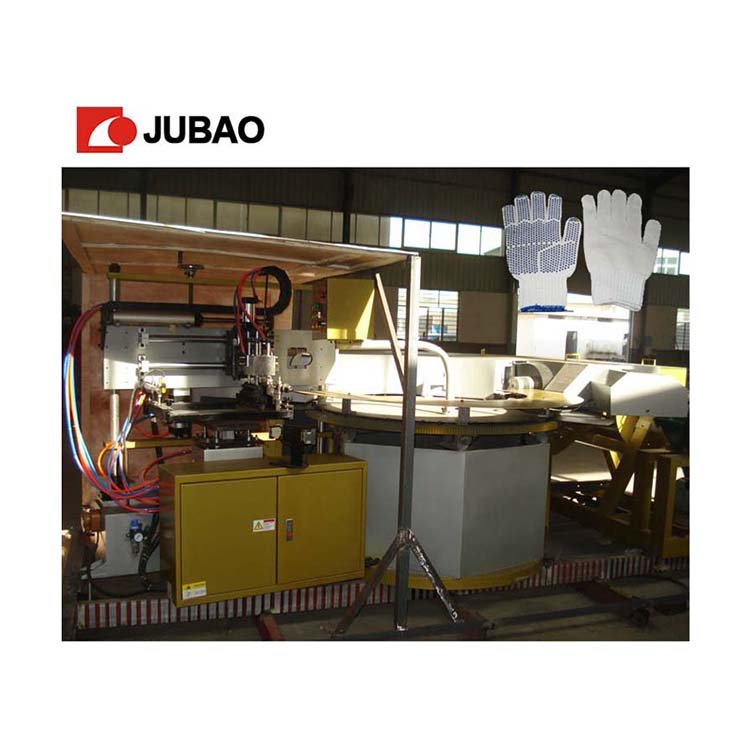

Glove dotting machine photos detail:
Tip: There is a need for more detailed information, please call customer service!
Inquriy Now
JB-SDB Cotton Glove Dotting And Printing Machine For Pvc Resin
- Products series： Glove machine seires
The printing machine suitable materials: PVC emulsion Silicon(SN5200)Latex/Vinyl
Main products: Cotton industrial gloves PVC bead dotting
The company’s production of JB-SD is used to print knitting and labor insurance glove. It can print dot, logo and pattern. The main material is PVC, when the glove go to printing position, the silk sreen press the glove and the knife make the pvc to glove , then glove go to oven for 180 degree oven, that the finishing glove comes out.
Jubao Machine
Glove printing machine technical parameters:
| Model | JB-SDB |
| Machine size(L*W*H)(m) | 2.9*2.6*1.5 |
| Oven temp. range(℃) | Lower than 300 |
| Hand mold(pairs) | 17 |
| Source air pressure(mpa) | 0.4 |
| Air consumption(cbm/min) | 1.1 |
| Power(kw) | Start:12 Normal:6 |
| Power supply | 3/380V 50Hz |
| Capacity(doz/hr) | 60 |
| Weight(kg) | 700 |
