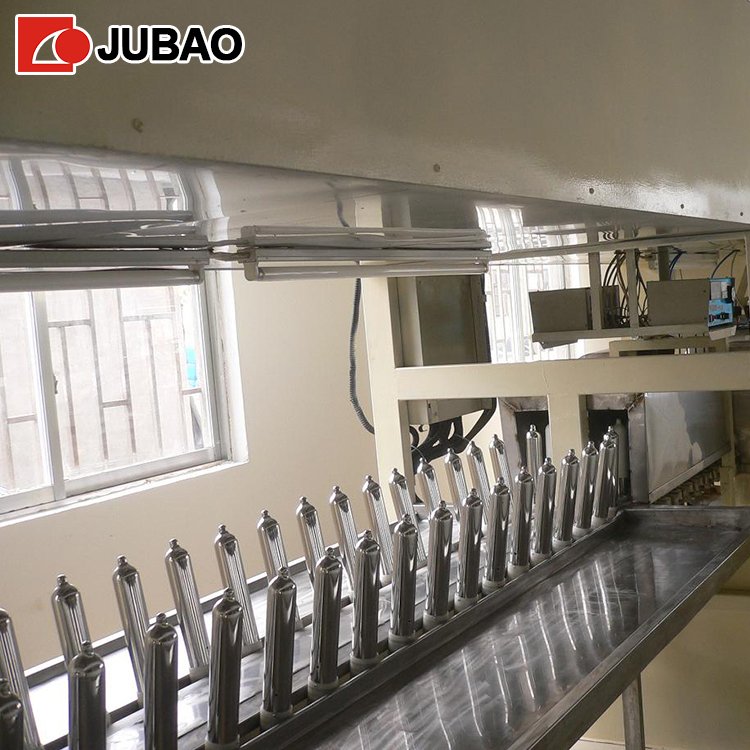

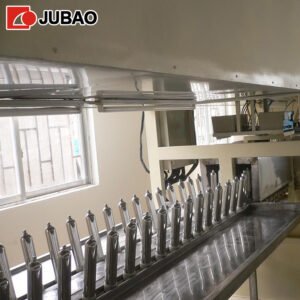

JB-DCT Latex Condom Pinhole Electric Dry Testing Machine

Condom Pinhole Electric Dry Testing Machine introduction

It is composed of high voltage module, detection control module, intelligent model, computer control and so on. The modern advanced computer programming controller is adopted, and the imported brake motor is used to separate, which ensures the stable, reliable and accurate detection of the machine. Improve the quality assurance of testing products to a new height. It is much lower than the AQL value of pinhole water leakage required by the national standard, and the false detection rate of the product is also better than that of the current wet electric detection machine. At the same time, it also has the advantages of light weight, small footprint, easy installation, convenient commissioning and maintenance.

Technical characteristics of condom dry electric inspection machine

1. Double chain transmission structure;

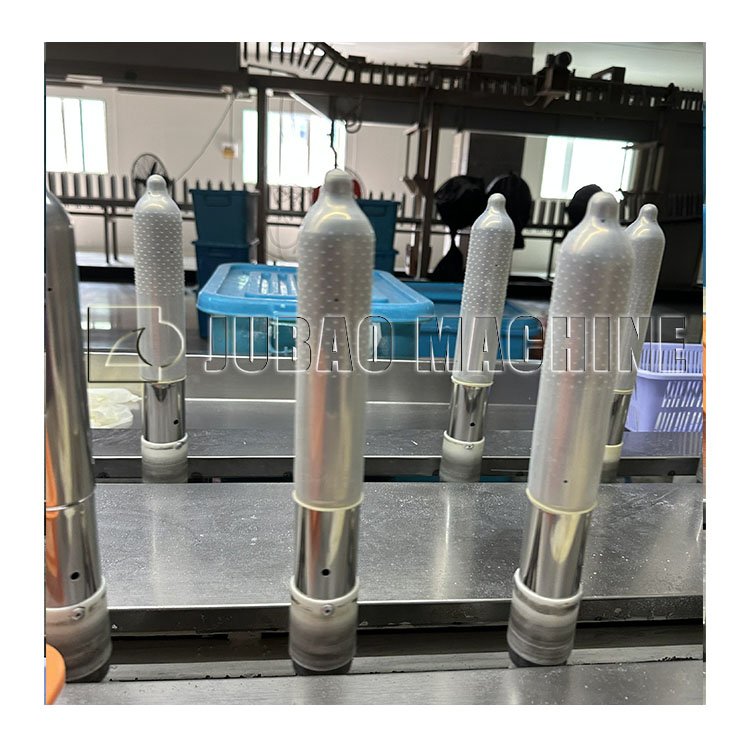

2. Intelligent mold with memory function;

3. High-voltage detection in the independent super-long area of ​​the head and body;

4. Use brake motors to separate genuine products and waste products;

5. Computer display and storage of testing parameters;

6. The integrated design of the whole machine, it can be produced when the power is turned on;

7. The installed capacity of the whole machine is 6KW, and the weight of the whole machine is 3T;

8. The maximum detection capacity is 270 condoms per minute;

9. The average value of the pinhole process of the product after the electric inspection is below 0.2, the pass rate of the product after the electric inspection is above 99.9%;
