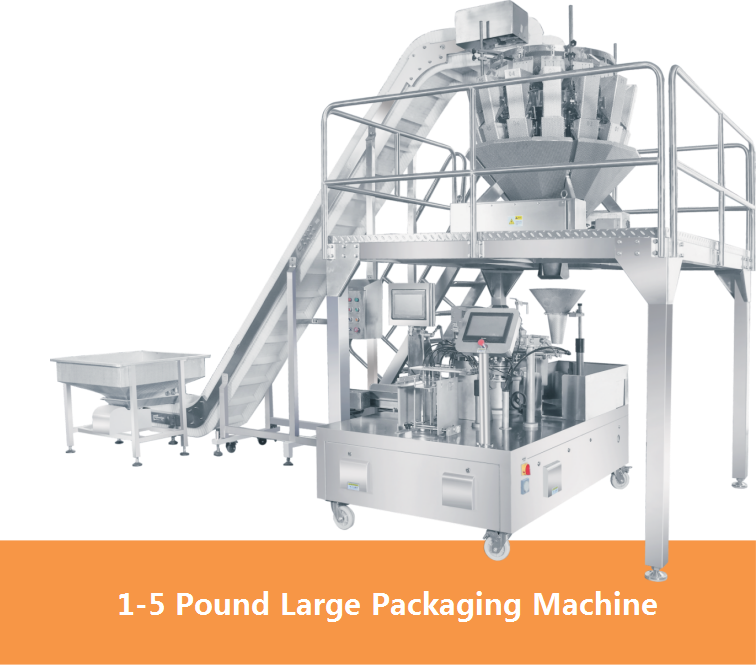

1-5KG Large Packaging Machine

1.Strong industry adaptability. Highly adaptable to the characteristics of high temperature, high humidity, and high salt content in the production workshop of the frozen food industry, multiple waterproof designs have been added to the body’s heat dissipation holes, which do not affect the cleaning efficiency of the workshop.

2. Wide applicability. One is that there are no special requirements for the material of the packaging bag, which can be applied to the vast majority of packaging bags on the market; Secondly, the adjustment range of the equipment is wide, and the packaging bag can be packaged with specifications ranging from 320-400mm in length and 190-300mm in width.

3.Wide compatibility range. The machine is equipped with an exhaust system and can be optionally stamped with a steel seal. The sealing is designed ergonomically to be flattened before sealing, resulting in a smooth and beautiful appearance. A unique passive software program that can match the vast majority of combination scales on the market and automatically adjust the packaging speed based on the cutting speed of the combination scales.

Jubao Machine

1-5KG Large Packaging Machine Product Features:

1.Strong industry adaptability. Highly adaptable to the characteristics of high temperature, high humidity, and high salt content in the production workshop of the frozen food industry, multiple waterproof designs have been added to the body’s heat dissipation holes, which do not affect the cleaning efficiency of the workshop.

2. Wide applicability. One is that there are no special requirements for the material of the packaging bag, which can be applied to the vast majority of packaging bags on the market; Secondly, the adjustment range of the equipment is wide, and the packaging bag can be packaged with specifications ranging from 320-400mm in length and 190-300mm in width.

3.Wide compatibility range. The machine is equipped with an exhaust system and can be optionally stamped with a steel seal. The sealing is designed ergonomically to be flattened before sealing, resulting in a smooth and beautiful appearance. A unique passive software program that can match the vast majority of combination scales on the market and automatically adjust the packaging speed based on the cutting speed of the combination scales.







Scope Of Application:

Various sausages, hot pot ingredients, beef balls, fish balls, peanuts, almonds, prepared dishes, etc

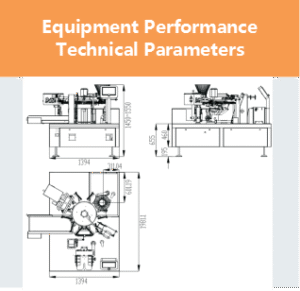

Technical information:

Equipment Power Supply 380V    50HZ    Three Phase Five Wire
Total Power 9.5KW
Host Size Length 1980 * Width 1400 * Height 1550mm
Rack Form Main frame 10mm iron plate, outer layer wrapped in stainless steel, rice gold package,Pei channel 304 stainless steel or other food grade materials
Packaging Channel 304 stainless steel or other food grade materials
Bag Supply Method Updraft
Packaging Weight Range 500g-2500g
Equipment Weight About 1200KG
Running Speed About 20-35 Packs/Minute
Equipment Weight About 2300KG
Sealing Constant Temperature Sealing
Accurate Weighing Range  Error plus or minus about 3 grams
Packaging Bag Specifications Bag length: (320-400m)
Bag width: (190-300mm)      bag thickness greater than 7.5 threads, packaging bag must have anti-static treatment
Pressure Requirements Gas consumption: 0.8m ³/min     Pressure: 0.6-0.8Mpa Clean gas
Inlet pipe: Φ 12mm (compressed air provided by the user)
